SDM080
The smallest valve of the Walvoil product range. It is used in Agricultural Machinery, Truck Mounted Cranes and small Aerial Platforms. - Type "S" free flow gallery - Single check valve - Only manual control.
Nominal Flow Rating l/min - (US gpm): 25 (6.6)
Max. Pressure bar - (psi): 315 (4600)
Number of Sections: 6
Pitch mm (in): 32 (1,26)
ACGA
Monoblock valve for low flow applications
The valve has the same features as the SDM080 valve. It can be
equipped with port valves and unloader valves. - Type "S" free flow
gallery - Single check valve - Auxiliary valves arrangement - Manual
and electro-hydraulic controls.
Nominal Flow Rating l/min - (US gpm): 25 (6.6)
Max. Pressure bar - (psi): 315 (4600)
Number of Sections: 6
Pitch mm (in): 32 (1,26)
SD4
Monoblock one-section valve
Available only in one‑section configuration, the SD4 valve is
normally used in Wood Splitter, small Dumpers, small‑sized Tractors
and Workshop Presses. Compact size, robust construction and low cost
are the main features of this valve. - No check valve - Manual,
electric on/off and pneumatic controls.
Nominal Flow Rating l/min - (US gpm): 45 (12)
Max. Pressure bar - (psi): 250 (3600)
Number of Sections: 1
SD5
Versatile and complete monoblock valve
The versatility of this valve makes it the perfect control device
for all sectors: Harvesting Machines, Brushcutter, Conveyors, Baling
Machines, small Front Loaders, Truck Mounted Cranes etc. One‑section
execution for circuits with carry‑over (SD5/1‑D) or without
(SD5/1‑N) are available. - Type "S" free flow gallery - Single check
valve - Parallel, series and tandem circuit - Manual, hydraulic,
electro-hydraulic, electric and pneumatic controls.
Nominal Flow Rating l/min - (US gpm): 45 (12)
Max. Pressure bar - (psi): 315 (4600)
Number of Sections: 7
Pitch mm (in): 37 (1,46)
SDM100
Medium flow compact monoblock valve
Monoblock valve with compact design and robust construction. - Type
"Y" free flow gallery - Parallel and series circuit - Auxiliary
valves arrangement - Check valve on each section - Manual,
hydraulic, electric, pneumatic and electro-hydraulic controls;
on/off and proportional controls.
Nominal Flow Rating l/min - (US gpm): 70 (18)
Max. Pressure bar - (psi): 315 (4600)
Number of Sections: 8
Pitch mm (in): 36 (1,42)

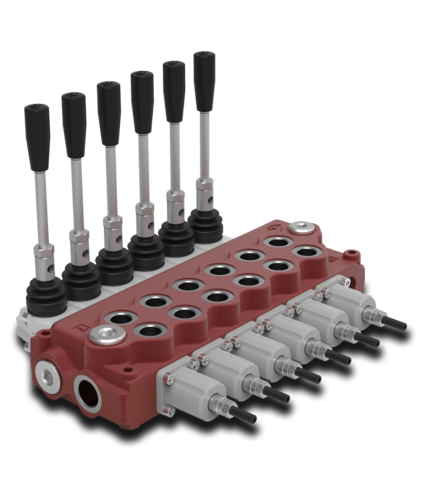

SD11
Versatile and complete monoblock valve
The SD11 valve is normally used on travelling and tilting vehicles,
Conveyors, and in auxiliary services for Cranes, Waste Compactors
and Vehicles Transporter. It’s available in one‑section execution
for circuits where carry‑over and closed centre are not required
(SD11/1‑N). - Type "S" free flow gallery - Single check valve -
Parallel and series circuit - Manual, hydraulic, electro-hydraulic
and pneumatic controls.
Nominal Flow Rating l/min - (US gpm): 70 (18)
Max. Pressure bar - (psi): 315 (4600)
Number of Sections: 6
Pitch mm (in): 45 (1,77)
SDM140 - DLM140
Compact and versatile monoblock valve
Thanks to its versatility, the SDM140 monoblock valve is the perfect
control device for applications like Agricultural Machines,
Harvesters, Front Loaders, Earth Moving Machines, Skid Steer
Loaders, Dumpers, Shovels, Telehandlers, Fork Lifts,Industrial
Vehicles and all Terrain Cranes. - Type "Y" free flow gallery -
Parallel circuit - Check valve on each section - Manual, hydraulic,
proportional electro-hydraulic and pneumatic controls. DLM140 is the
Load Sensing configuration of SDM140 valve and shows the same
performance, versatility and configurations.
Nominal Flow Rating l/min - (US gpm): SDM140: 80
(21)
Max. Pressure bar - (psi): 315 (4600)
Number of Sections: 6
Pitch mm (in): 45 (1,77)
SD14
Monoblock one-section valve
Available only in one‑section configuration, the SD14 valve is
normally used to control motors for Boom Mowers, Conveyors and
medium‑size Wood Splitter. Equipped with an ON/OFF electro-hydraulic
control kit, it is assembled on Skid Steer Loaders. - Single check
valve - Manual, hydraulic, electro-hydraulic and pneumatic controls.
Nominal Flow Rating l/min - (US gpm): 120 (32)
Max. Pressure bar - (psi): 250 (3600)
Number of Sections: 1
SD18
Monoblock valve for high flow applications
Thanks to its robust construction, the SD18 valve is used in
agricultural machinery to control motors for large Boom Mowers, and
in Industrial Vehicles such as Waste Compactors and drain systems. -
Single check valve - Manual, hydraulic, electro-hydraulic and
pneumatic controls.
Nominal Flow Rating l/min - (US gpm): 160 (42)
Max. Pressure bar - (psi): 250 (3600)
Number of Sections: 6
Pitch mm (in): 53 (2,09)
SD6 - DLS7
Small, compact and flexible sectional valve
SD6 is the ideal control valve for Truck Mounted Cranes, Boom Mowers, Miniexcavators, Backhoe Loaders small and medium Chipping Machines and Aerial Platforms. The DLS7 Load-Sensing version is assembled and on Aerial Platforms as well as vertical and horizontal Drilling Rigs. - Type "S" free flow gallery - Fitted with a main pressure relief valve and a load check valve on every working section - Available with parallel, tandem or series circuit. - Optional carry-over port. - A wide range of ports and circuit valves. - Manual, pneumatic, hydraulic, electro-hydraulic, and remote with flexible cable controls
Nominal Flow Rating l/min - (US gpm): SD6: 45 (12) DLS7: 60 (16)
Max. Pressure bar - (psi): 315 (4600)
Number of Sections: SD6: 12
Pitch mm (in): 38 (1,50)
SDS100
Compact, versatile and flexible sectional valve
Mainly designed for Mini-excavators and suited for different circuits with high technology, thanks to the compact size related to the flow, the proportional controls and the versatility. - Type "Y" free flow gallery - Check valve on each section - Intermediate sections for several types of circuit - Manual, pneumatic, electric, hydraulic, electro-hydraulic, on/off and proportional controls - Last section works as outlet
Nominal Flow Rating l/min - (US gpm): 45 (12)
Max. Pressure bar - (psi): 315 (4600)
Number of Sections: 10
Pitch mm (in): 36 (1,42)
SD8 - DLS8
Compact, versatile and flexible sectional valve
The technical features, flow rate and pressure limit make the SD8 valve ideal for different applications, but particularly for Cranes, Telescopic boom fork lifts, Back-hoe Excavators and Compactors. The DLS8 Load Sensing version is used with a manual control kit for vertical and horizontal drilling rigs and for Front-loaders. - Fitted with a main pressure relief valve and a load check valve on every working section - Available with parallel, tandem or series circuit - Optional carry-over port - A wide range of ports and circuit valves Intermediate sections for several types of circuit - Manual, pneumatic, hydraulic, electro-hydraulic and remote controls with flexible cable spool control kits.
Nominal Flow Rating l/min - (US gpm): SD8: 80 (21): DLS8: 100 (26)
Max. Pressure bar - (psi): 315 (4600)
Number of Sections: DLS8: 10 - SD8: 12
Pitch mm (in): 41 (1,61)
SDS140
Performing, versatile sectional valve
Simple, compact and heavy duty designed sectional valve from 1 to 12 sections for open and closed centre hydraulic systems with fixed displacement pumps or variable displacement pumps. - Different types of inlet covers: open center, with priority valve, open/closed center with flow unloader valve - Working sections with or without direct and pilot port relief valves - Proportional electro-hydraulic controls - Load Sensing circuit available - Optional spool position sensors.
Nominal Flow Rating l/min - (US gpm): SD8: 80 (21): DLS8: 100 (26)
Max. Pressure bar - (psi): 315 (4600)
Number of Sections: DLS8: 10 - SD8: 12
Pitch mm (in): 41 (1,61)
SDS150
Robust, versatile and flexible sectional valve
With a simple and rugged design, this SDS150 valve is assembled on Travelling Vehicles, Agricultural Loaders, Forestry Cranes and Container Trailers. - Type "S" free flow gallery - Fitted with a main pressure relief valve and a load check valve on every working section - Available with parallel, tandem or series circuit. - Optional carry-over port. - A wide range of ports and circuit valves - Manual, pneumatic, hydraulic, electro-hydraulic, and remote with flexible cable controls.
Nominal Flow Rating l/min - (US gpm): 90 (24)
Max. Pressure bar - (psi): 315 (4600)
Number of Sections: 12
Pitch mm (in): 45 (1,77)
SD25
High flow sectional valve
This valve is assembled on large container Fork Lifts and Stackers, all Terrain Cranes, Garbage Compactors, Drain Machines, large Agricultural Loaders and Earth Moving machines. - Type "Y" free flow gallery - SAE flange arrangement - Fitted with a main pressure relief valve and a load check valve on every working section - Available with parallel or series circuit. - Optional carry--over port. - A wide range of service ports and circuit valves - Manual, pneumatic, hydraulic, electro-hydraulic, and remote with flexible cable controls.
Nominal Flow Rating l/min - (US gpm): 240 (63)
Max. Pressure bar - (psi): 315 (4600)
Number of Sections: 12
Pitch mm (in): 62 (2,44)
SDS400
High flow sectional valve
Sectional directional control valve for high flow, available for fixed displacement hydraulic pumps. - Optional Carry-over port - SAE flange arrangement - Main pilot relief valve on inlet cover and load check valve on every section - Wide range of port valves available - Manual and hydraulic controls
Nominal Flow Rating l/min - (US gpm): 400 (105)
Max. Pressure bar - (psi): 315 (4600)
Number of Sections: 10
Pitch mm (in): 74 (2,91)
